High Speed Glass Lane Flap Turnstile Barrier Gate With TCP / IP Door Access Control System

  • 1
  • 2
  • 3

Brand Name : Goldantell

Model Number : GAT-218

Certification : CE/ROHS/FCC/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T ,western Union,LC,Paypal

Supply Ability : 2,000pcs per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Material : 304 stainless steel/316 stainless steel

Size Of product : 1200/1400*300*1005mm

Net weight : 80KGS/PC

Gross weight : 90KGS/PC

Communication port : RS485 ,TCP/IP

Application : Indoor&outdoor

Compatible : RFID Reader&Fingerprint Reader ,Coin access,QR code reader,Bar code System,ESD Tester Access Control, remote button

Product Name : Flap Turnstile Barrier Gate

Custom : Customer logo , Customer design

Contact Now

High Speed Glass Lane Flap Barrier Gate With TCP / IP Door Access Control

System


Flap Turnstile Barrier Gate Specifications:

Name
Flap Barrier / Flap Turnstile
Transmission
Sine Linkage
Model No.
GAT-218
Frenquency
50-60Hz
Housing Size

1200/1400*280*990mm
Control type
IC/ID / Barcode control / Bimetric accepted
Housing Material
304 grade stainless steel optional
Max Channel Width
600mm
Passing speed
30 person/min
Logic voltage
24v
Working voltage

AC220V±10V, 50HZ
Direction
Single or Bi-directional
Motor voltage
220V
Operating humidity
≤90% non-condensing
Rated Power
80w
Operation life
≥5 million times
Working temperature
-45°C--+80°C
Net Weight
80kg
Communication Interface
RS485/RS232
Gross Weight
90kg


Flap Turnstile Barrier Gate Function & Featuers:


1 . Close and open by remote control

2 . Failure detection and alarm functions;

3 . Flow direction guide with high bright led lamp

4 . Normal close or normal open (for group pass)

5 . Can be integrated with all kinds of access control systems,

6 . Anti-punch, the barrier will not close if it detects people inside the passageway

7 . Anti-tailgating, it allows only one person to pass for an authorized card presented.

8 . Anti-panic, when power off, the barrier will open for people to go through.

9 . Bidirectional control, by authorized card or biometric identifications, push button and so on

10 . Card reading memory function, the user can set multiple time card reading passing or single time

11 . nstalled in indoor or outdoor

12 . Multi-working mode----Forbidden, Controlled or Free Passing optional

13 . Easily integrated with any type of readers---such as magnetic card, barcode card, RFID card and so on.

14 . Card-swiping memory function

15 . Always open or close mode. In an emergency, the passage will be freely pass automatically

16 . Bi-directional passing or single way passing.

17 . LED Counter, Direction indicator.

18 . Infrared detector to sense the passing status.

Flap Turnstile Barrier Gate Picture & Package:


High Speed Glass Lane Flap Turnstile Barrier Gate With TCP / IP Door Access Control System
High Speed Glass Lane Flap Turnstile Barrier Gate With TCP / IP Door Access Control System

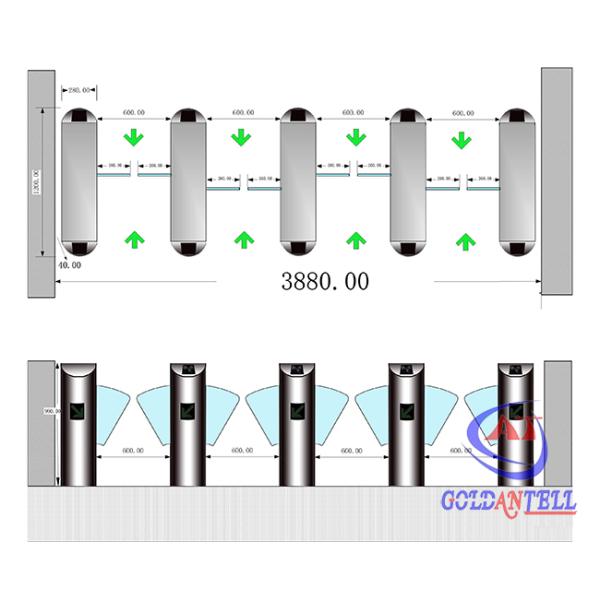

Flap Turnstile Barrier Gate Design Picture:

High Speed Glass Lane Flap Turnstile Barrier Gate With TCP / IP Door Access Control System

Why choose us:

1. Our Factory has 14 years OEM/ODM experiences in the line of access control turnstile and barrier.

2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.

3. We accept OEM/ODM orders to meet the requirements of clients.

4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
