Stainless Steel 304 ESD Turnstile Gate with 24 Months Warranty and 1200*280*1000 mm Dimensions

Standard equipped function for one unit:

1. Can be completed quickly for the ESD test. At one time to complete the ESD testing of three separate devices (left footware,right footware,and Anti-static wrist strap)
2. Default system setting: auto open if the power is off. ( to meet the fire protection requirement).
3. Can set the working condition by press the button of main control board.
4. Can set for single direction or two directions to go through the machine.

Turnstile Specification
Product Model	GAT-303	Type	three arm semi-auto
Product Size	1200(L)* 280(W)* 1000(H)MM, the size can be customized	Opening Time	1-2 second
Access Control System	ESD system, RFID +Fingerprint+password or QR code or coin control, or manual	Material	304 stainless steel
Output signal	standard Relay signal	Passing Direction	bi-directional or single (adjustable)
LED indicator	it is optional for you, and the installtion location can also be changed	Special service we can offer to you	according to your installation place, we can offer the custom product to save your cost.

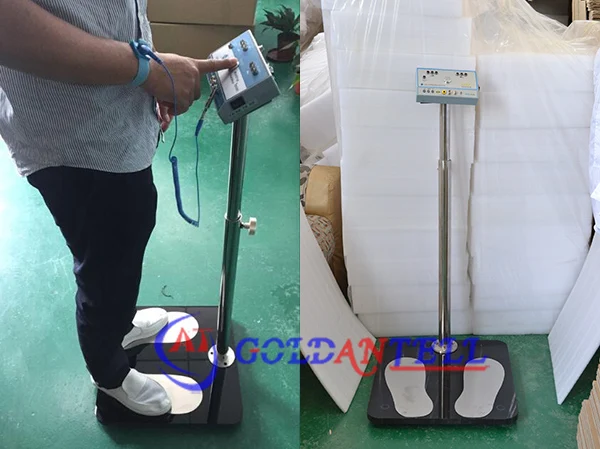

ESD Tester Specification
Instrument Size	(W)166mmx(L)96mmx(H)40mm	Left footware Limit value	750kΩ-100MΩ
Pedal Size	(W)400mmx(L)450mmx(H)20mm	Right footware Limit value	750kΩ-100MΩ
Movable Settle Adjust Distance	>120mm	Wrist Limit value	750kΩ-10MΩ
Total weight	6.5kg	Test accuracy	±10-20%

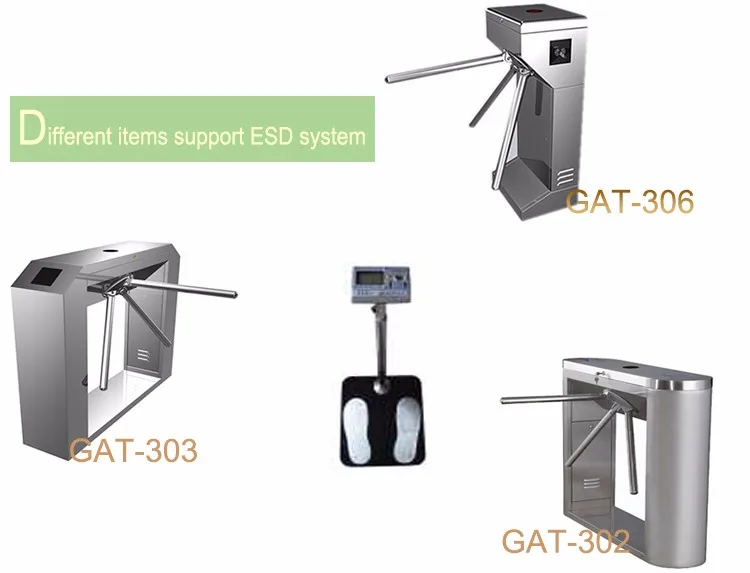

For ESD Turnstile series

Option 1: with LCD screen, with access control software,built into "turnstile gate" below.

Option 2: no lcd screen, no software

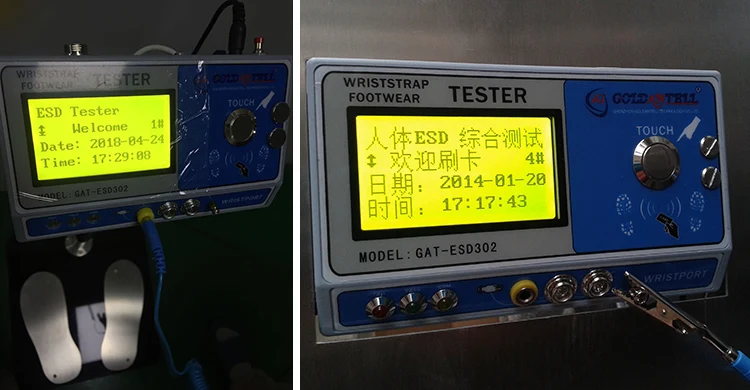

1. the function of LCD display. It can show resistance range such as footware is 0.75MΩ-35.00MΩ and wrist band is 0.75MΩ-9.999M Ω), LO limited value is 0.75MΩ and HI limited value is that footware is over 35.00MΩ and wrists strap is over 9.999MΩ. And it can warn and auto-transfer capacity .If test result by three test paths are in the test range, then wall mounted equipment will give you a voice announce, and output door opening signal to control tripod turnstile, air shower and other electronic doors, etc.

2. Support the Employee mode and guest mode. Employee mode need to use EM card and it can show Name, Card No.,Date&Time. It has four ESD modes as below:

A. Door opens after swiping EM card and wrist strap and footware test passed;

B. Door opens after swiping EM card and footware test passed

C. Door opens after swiping EM card and wrist test passed

D. Door opens directly after pressing buttons No need swiping EM card in guest mode. Door just opens after wrist and footware test passed

3. This tester is a triple play tester that combines checking attendance,access control and ESD testing.

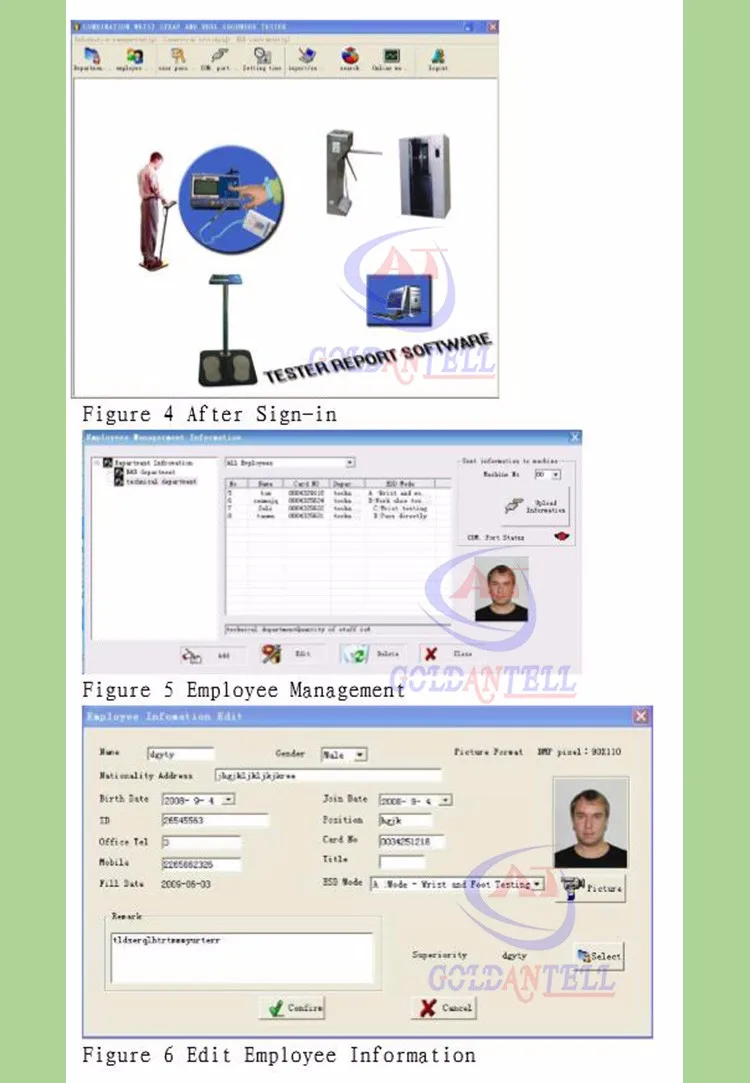

How you can easily use the tester software under our instruction

1. pre-sale service: good communication to better understanding of your demand,our professional and passionate staff will soon offer you full product info including manual, testing video,details picture, certification and similar project. Furthermore, to save your time and cost, we can also give you professional suggestion and effective solutions to best support your item.

2. on-purchase service: keep updating the production process to you,once production is well done, will send the product clear photos and testing video for your final confirmation.

3. after-sale service: regarding the usage, offer you the instruction, manual or detailed video to guide you quickly install and use the product. Regarding guarantee & repairing, if any product quality question in warranty, we are totally responsible for it. If spare parts was damaged, we will send you free accessories By fastest express way,you no need bear any fee. If other problem resulted the product work unstable, our engineers will instruct and help you solve it asap,only need you take a video or photo for us.

4. OEM/ODM service: More than 10 years powerful ODM/OEM ability,could make product shape design, customize logo, customize product size and color, customize package.

5. professional service: 16 hours online or off-line prompt response to your inquiry; help you confirm what product you really need; product and related software system can be both provided by us.

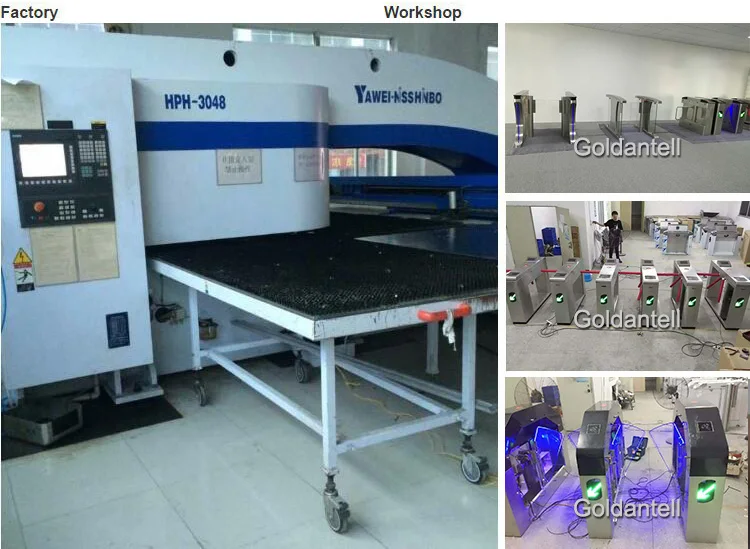

Our Shenzhen Goldantell Technologies Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years’ experience

Our main products include intelligent turnstiles,parking barrier, RFID card,sentry box, wheel clamp and other related security access control system and parking system. We have exported to more than 50 countries and built long term partnerships with clients.

Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.

1-Can you install RFID card reader on the turnstile?

Yes,except the RFID card reader system,we also can install fingerprint reader, barcode, token system,esd system,etc.

2-How about the guarantee and after sale service?

We have 12 month quality guarantee, please refer to our Competitive service in the above.

3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer

4-How about the payment terms?

TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order security.

5-How do you send the product to me,how long?

For sample,normaly send by air or express,about 3-5 days

For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.

6-Can you do OEM service?

We offer below OEM services:

1)We can make custom design turnstile,or you tell me your requirements ,we can make a design for you.

2)Can print your logo on turnstiles, can offer the retail box packing or other custmized service.
